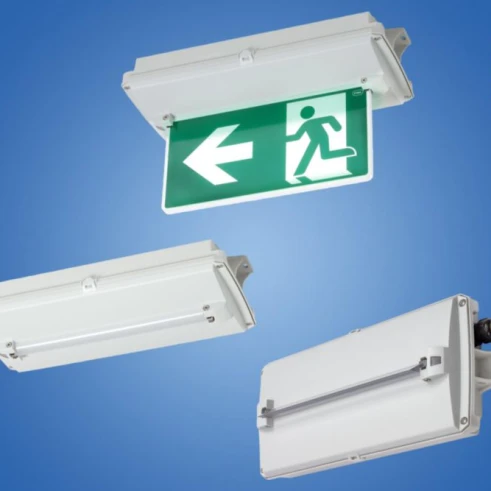

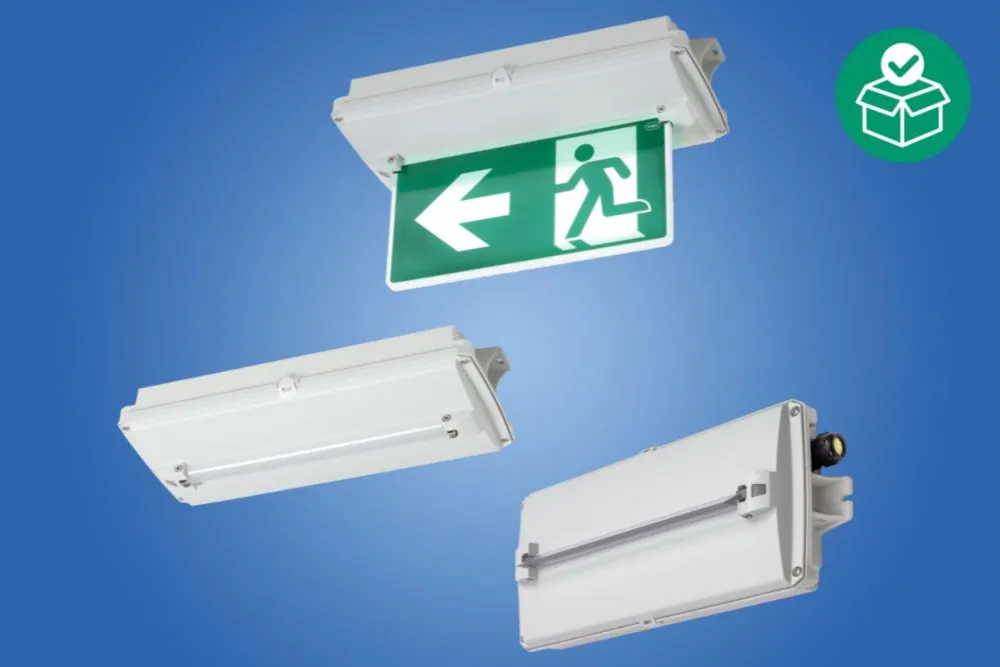

6109/111-0101-160-0111-31-0850-001, Emergency luminaire LED, Control interface: without, Variant: Without diffuser 15° Zone 1, 2, 21, 22

Art. No.: 287798
Product Type: 6109/111-0101-160-0111-31-0850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Subsitution for material: 274678
Zone: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP)
Lamp: LED
Light distribution: 2 x 15° (without light attachment)
Luminous flux: 775.00
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 … 17 mm
